Presentation
- Performance & ease of use
- Comfort and safety
- Minimized total cost of ownership
Specifications
Performance & ease of use
- Industry leading working envelope with an outreach of 27 ft 3 in
- Rapid lifting speed of 40 sec
- Fully proportional and simultaneous movements
Comfort and safety
- Haulotte Activ'Shield Bar 2.0 (option)
- Haulotte Activ'Lighting System (option) for safe loading / unloading in low visibility conditions
Minimized total cost of ownership

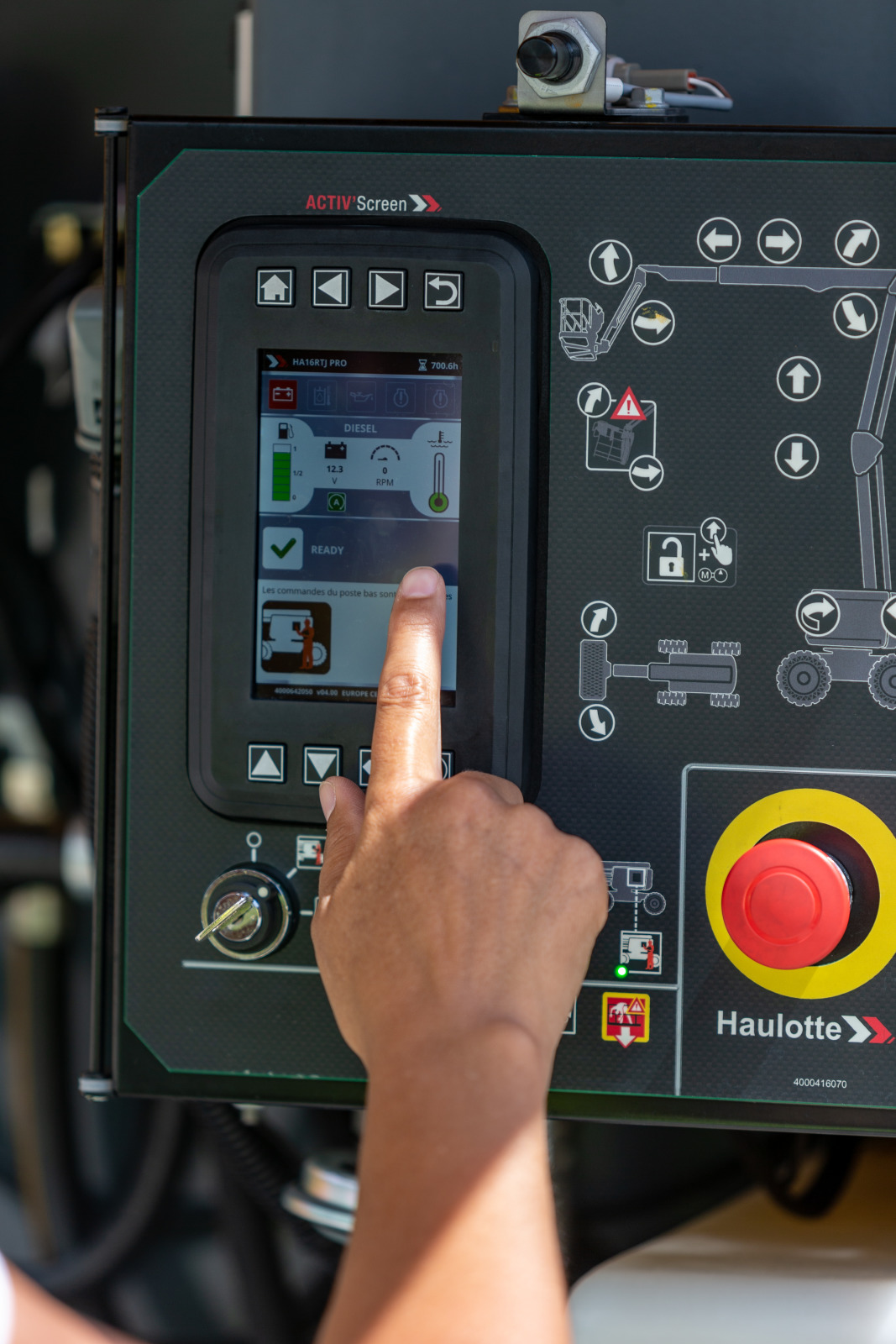

- Haulotte Activ'Screen (on board diagnostics)
- Haulotte Stop Emission System: automatically turns engine off & on
- Easy access to all components
- Fully modular basket with upper control box cover
| Working height | 51 ft 11 in |
| Platform height | 45 ft 11 in |
| Horizontal outreach | 27 ft 3 in |
| Up and over clearance | 25 ft 1 in |
| Lift capacity | 500 lb (2 pers.) |
| Platform size | 95 in x 34.5 in |
| Length | 22 ft 2 in |
| Width | 7 ft 7 in |
| Height - stowed | 7 ft 7 in |
| Storage / transport length | 16 ft 7 in |
| Storage / transport height | 7 ft 10 in |
| Vertical jib rotation | 140° (- 80° / + 60°) |
| Platform rotation | 165° (- 75° / + 90°) |
| Turntable rotation | 355° non continuous |
| Tailswing | 4 in |
| Wheelbase | 6 ft 11 in |
| Ground clearance | 15 in |
| Tilt | 5 ° |
| Drive speed | 3.2 mph |
| Maximum wind speed rating | 28 mph |
| Gradeability | 40 % |
| Tires - solid rough terrain | 32.7 x 11.2 in |
| Turning radius - outside | 14 ft 9 in |
| Power source | Kohler, TIER 4 final : Stage V, KSD 1403 NA / 18,4 kW |
| Weight | 13,835 lb |
| Ground clearance - mini | 0 ft |
| Ground clearance - maxi | 0 ft |
- Haulotte Stop Emission System
- Onboard Haulotte Activ'Screen diagnostics on lower control box, with color screen
- Telematics solutions
- 4 wheel drive
- 2 wheel steer
- Front oscillating axle increases stability on uneven ground
- 4 simultaneous movements for maximum productivity
- Permanent limited slip differential
- Upper control box cover
- Tool tray
- Modular standard basket 8 ft x 3 ft, quick and easy to repair
- Lateral swing door entry gate
- AC power to platform (110 / 230 V)
- Swing out engine tray for ease of maintenance
- Sound and light alarm for tilt and load
- Rotating beacon
- Travel alarm
- Hour meter
- 12 V battery / electrical control system
- Engine pre-heater with light indicator
- Low fuel level indicator (upper & lower control boxes)
- Electric emergency descent pump system
- Haulotte Activ'Lighting System
- Haulotte Activ'Shield Bar 2.0
- Large cured on solid rough terrain tires 41.9 x 14.4 in
- Non-marking tires
- Air-line to platform 0.25 in inside diameter
- Hydraulic generator Dynaset 3.7 Kw
- Biodegradable hydraulic oil
- Cold weather kit: 14°F / - 13°F
- Warm weather kit: hydraulic oil cooler + hydraulic oil
- Platform work lights
- Battery cut-off
